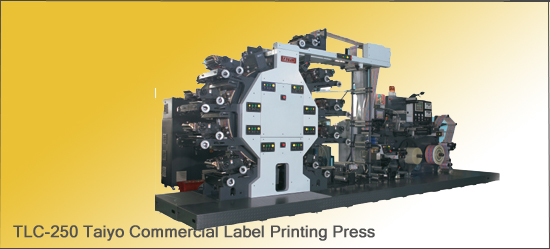

TLC-250-8C Taiyo Commercial Label Printing Press |
| ------------------------------------------------------------------------------------------------------------------------------------------------------------------ |
>
TLC-250-8C
Taiyo Commercial Label Printing Press
|
| ------------------------------------------------------------------------------------------------------------------------------------------------------------------ |
| Features
Taiyo label press model
TLC-250 performs highest quality letterpress printing
at the speed of upt to 80 m/min (260 fpm) with
flat bed die cut and 120 m/min (400 fpm) with
rotary die cut unit.
Central drum impression cylinder at printing station
accommodates six letterpress printing units.
Additional stack type printing statin can provide
printing units of up to threee printing units.
The use of central drum statin and stack statin
enables the press to have up to 9 - 12 colors.
Model TLC press can furnish such optional units
as laminating, sheeting and hot-stamping, making
the press widely versatile for the productino
of a wide range of label industry demands
|
| TLC-250-8C
Standard Specifications |
| Max. paper width |
260 mm |
| Max. printing width |
250 mm |
| Max. paper roll dia. |
800 mm |
| Max. line speed |
120 meter per minute |
| Print repeat |
7-5/8" - 18" |
| Gear increment |
1/8" |
| Die cutting |
2 cylinder rotary die cut (7-5/8" -
18") |
| Option |
Laminate, Sheet cut, Flat Bed Die Cut and
more |
| |
|
|
| |
