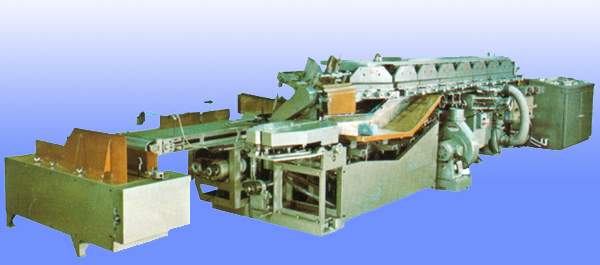

| ITOH
BOOK TYPE IBM-12
<A4-19,B4-19,B4-23> |
|
|
| ITOH
BOOK TYPE
IBM-12 <A4-19,B4-19,B4-23> |
Features |
| The compact
organization as wellas the perfect and ruggd construction
of the machine realizes an ideal iine system when
uesd with the Gatherer and Coupler and assures easy
and safe binding operation. |
| The smooth
and hight-speed operation of the machine have been
realized by the employment of hight-strength rooller
chains and double-shaft gear devices to prevent
faltering in rotation and synchronization at speed
changes. |
| |
|
Specifications |
Book size:Min
A6 115x158mm |
Electric required:
17.5kw |
Feeder pump :
0.75kw |
Book
size:Max A4 220x320mm |
main motor :
7.5kw |
<Vibrator :
0.1kw> |
Odd-sized
book are |
Cutter :
3.7kw |
Hot melt :
4.7kw |
also
processed |
Cutter blower :
2.2kw |
|
Thickness: 3-60mm |
Roughener :
0.75kw |
|
Speed: 3000-9000 book/hr |
Roughener blower:
0.2kw |
|
|
|
|
|
| |

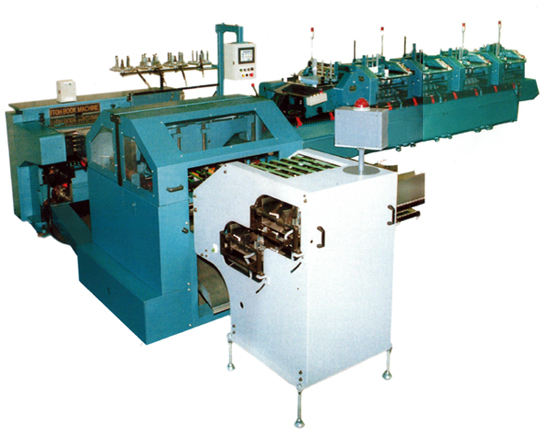

| FULLY
AUTOMATIC HIGH-SPEED STITCHER LINE
Gathering,Stitching,Trimming |
|
|
| |
| FULLY
AUTOMATIC HIGH-SPEED STITCHER LINE Gathering,Stitching,Trimming |
| 1.Fully Automatic High-speed Stitcher
|
| 2.Fully Automatic 3-Knife Trimmer |
| 3.High-speed Automatic Signature feeders |
| 4.Hight-speed Automatic Cover feeder |
| Specifications
|
|
| Stitching position |
2-4 |
| Wires |
0.42-0.6mm |
| Size |
320x450 max |
| |
100x148 min |
| Thickness |
1-12mm |
| Capacity |
3000-12000/hr |
| |
|
|
| |
| |
|
